ASTM D6413 Vertical Flammability Testing Equipment 25d / 900d Burning Angle

Place of Origin CHINA
Brand Name SKYLINE
Certification CE
Model Number SL-F15
Minimum Order Quantity 1 unit
Price neogitable
Packaging Details plywood case
Delivery Time 10 working days
Payment Terms T/T, Western Union,
Supply Ability 1 unit / month
Product Details
SKYLINE: Vertical Flammability Tester Standard: CFR 1615/1616 STANDARD FOR THE FLAMMABILITY OF CHILDREN'S SLEEPWEAR
Diameter Of Burner Opening: Φ11mm ± 0.3mm Igniter Dimension: 35 Cm X 40 Cm X 205 Cm
Burning Angle:: 25° Or 90° Flame Height: 30mm ± 2mm To 50mm±2mm (adjustable)
Highlight:

ASTM Flammability Testing Equipment

,

25d Flammability Testing Equipment

,

900d fire testing equipment
Product Description

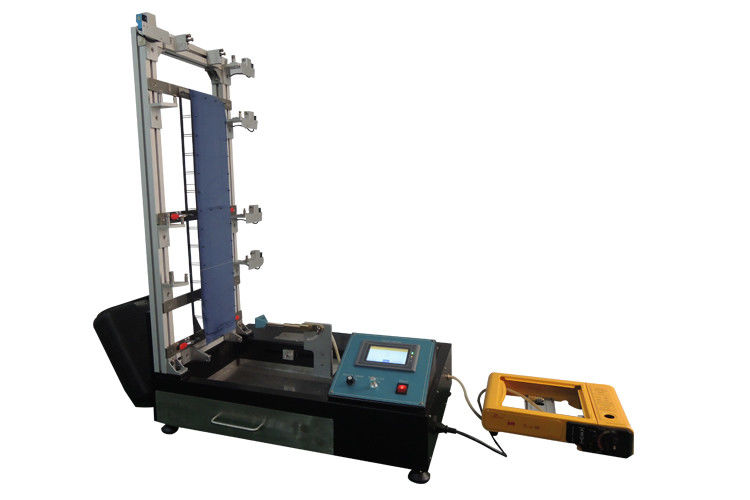

Textile Fabrics Vertical Fire Testing Equipment CFR 1615/1616 For Knitted Fabric


Standards
CFR 1615/1616 standard for the flammability of children's sleepwear
CA TB117 Requirements, Test Procedure and Apparatus for Testing the Flame Retardance of Resilient Filling Materials Used in Upholstered Furniture
ASTM D6413 Standard Test Method for Flame Resistance of Textiles (Vertical Test)
ISO6940/6941 –Textile fabrics- Burning behavior-Measurement of flame spread properties of vertically oriented specimens

Application
Textiles vertical flammability test apparatus is applied to test the burning behaviour of woven fabric, knitted fabric, coated fabric and Laminated products. The equipment is designed according to JIS1091-1992.

Specifications
 Burner  Φ11mm ± 0.3mm igniter
 Burning angle  25° or 900
 Flame height  30mm ± 2mm to 50mm±2mm (adjustable)
 Burning time  0-999.9s±0.1s (adjustable)
 Afterflame time  0-999.9s±0.1s
 Afterglow time  0-999.9s±0.1s
 Burning gas  98% propane gas
 Clamps  U-sharp clamp, (L)422*(W)89*(TH)2mm, interior size: 356*51mm
 Weights  54.5g, 113.4g, 226.8g, 340.2g, 453.6g each one
 Working size
 (W)329*(D)329*(H)767mm



What is a cone calorimeter test?

A cone calorimeter is a device used to study the fire behavior of small samples of various materials in condensed phase. It is widely used in the field of Fire Safety Engineering. ... The Cone Calorimeter has long been considered the most significant bench scale instrument in the field of fire testing.
