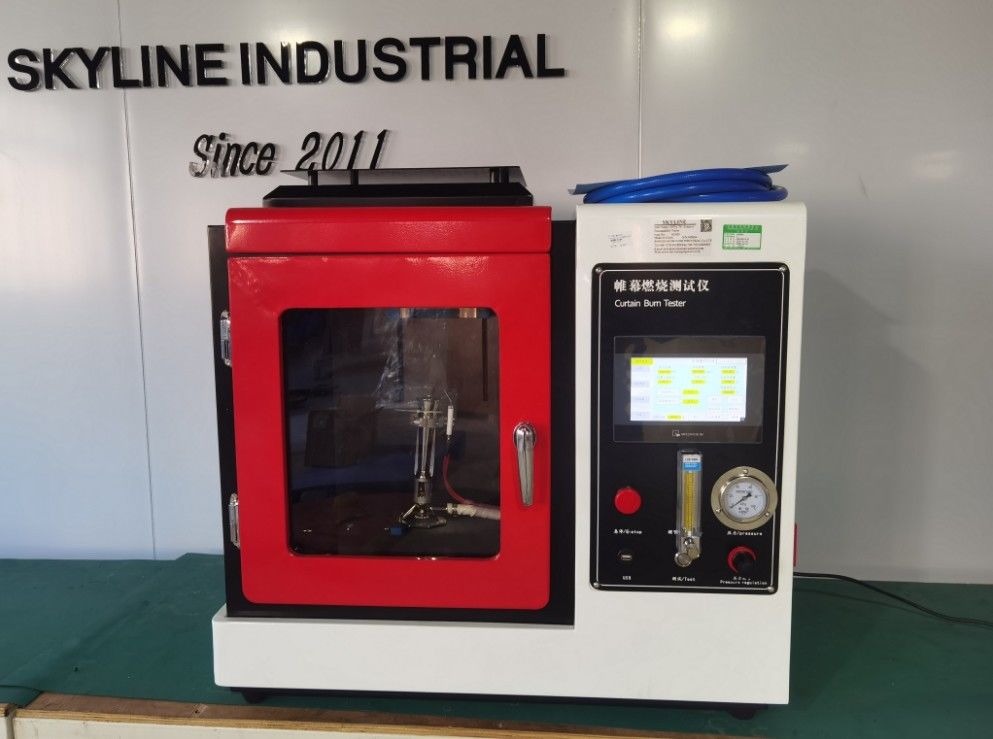

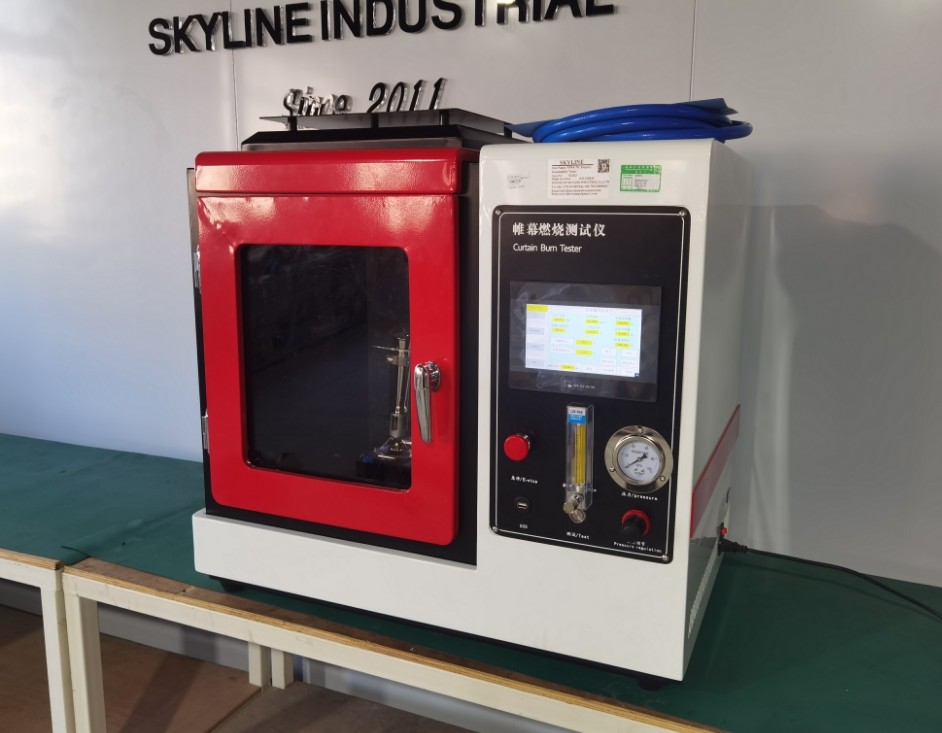

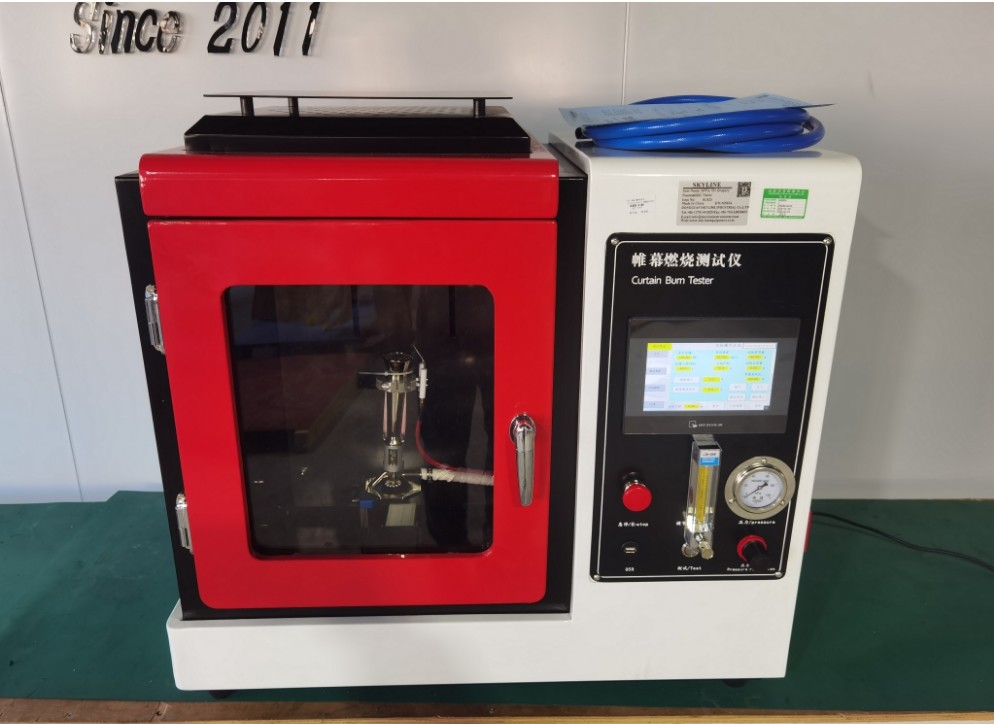

220V NFPA 701 Drapery Flammability Testing Equipment
220V NFPA 701 Drapery Flammability Testing Equipment
220V NFPA 701 Drapery Flammability Testing Equipment
220V NFPA 701 Drapery Flammability Testing Equipment

220V NFPA 701 Drapery Flammability Testing Equipment

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL823

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: neogitable

Packaging Details: plywood case

Delivery Time: 10 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1 unit / month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Drapery Flammability Testing Equipment

,

NFPA 701 Flammability Testing Equipment

,

220V Flammability Tester

SKYLINE:
Drapery Flammability Tester
Standards:
NFPA 701
Timer Accuracy:
0.1 S
Dimension:
829mm (W) X 520mm X (H) X 460mm (D)
Weight:
61kg
Ambient Temperature:
10 ° C To 35 ° C
SKYLINE:
Drapery Flammability Tester
Standards:
NFPA 701
Timer Accuracy:
0.1 S
Dimension:
829mm (W) X 520mm X (H) X 460mm (D)
Weight:
61kg
Ambient Temperature:
10 ° C To 35 ° C
Product Description

Drapery Flammability Tester for Test the Flame Retardant Properties of Hanging Fabrics

Product introduction



NFPA 701 is Standard Methods of Fire Tests for Flame Propagation of Textiles and Films. According to different fabric weight, divided into 1 methods and methods 2.

Technical parameters

1.Specified apparatus for all hanging decorative materials weighing less than 21 oz/yd² (700 g/m²).
2.Manufactured with specified ½" marinite panels framed in stainless steel.
3.Meker Burner with Spark ignition.
4.Gas system include the flow meter, pressure meter and pressure reducing valve.
5.Automatically shut the system down completely after the 45-second flame application.

Product Feature and Application

1.Open combustion box structure;
2.Calcium silicate board case, stainless steel wrapped outside;
3.Meker Burner burner;
4.The burner is available for heat of 10,500 BUT/Hour;
5.Automatically set 20 seconds gas release time and standard burning time;
6.Automatic ignition ignition mode;
7.The timer accuracy is 0.1 second;
8.A standard sample holder is provided.

Product Details of the Drapery Flammability Tester

Drapery Flammability Tester, mainly used in NFPA 701 Method 1, is used to test the flame retardant properties of hanging fabrics such as curtains and curtains. Can be applied to single or multi-layer fabrics, but not to fabrics with a weight greater than 700 g/m2 (21 oz/yd2)

Standards:NFPA 701
Dimension:829mm (W) x 520mm x (H) x 460mm (D)
Weight:61kg
Installation requirements
Power requirements: 220 V, 5 Amps
Ambient temperature: 10 ° C to 35 ° C
Working gas: methane



Drapery Flammability Tester NFPA701-1.pdf
