1500L Temperature and Humidity Test Chamber with 304 Stainless Steel Material

Place of Origin CHINA
Brand Name SKYLINE
Certification CE
Model Number SL-E01
Minimum Order Quantity 1 unit
Packaging Details plywood case
Delivery Time 10 workding days
Payment Terms Western Union, , T/T
Supply Ability 1 unit / week
Product Details
Skyline: Contant Temperature And Humidity Testing Chamber Controller: LCD Colour Touch Screen
Stability: ± 2.5% RH. Temperature: -40 ℃ ~ 150 ℃
Material: Inner Box 304# Stainless Steel Temperature Distribution: ± 1.0 ℃
Highlight:

climatic test chamber

,

temperature testing equipment
Product Description

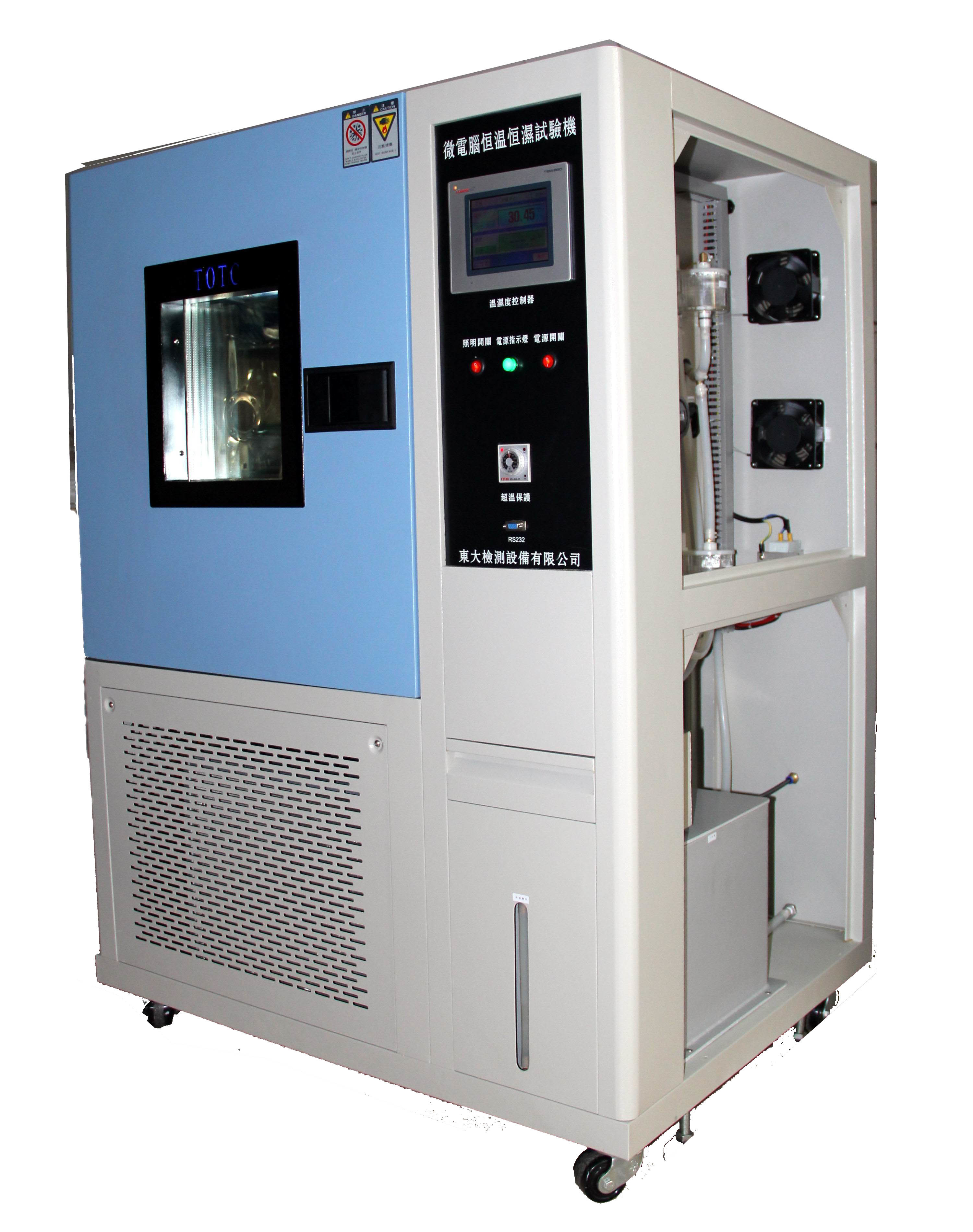

1500L Temperature and Humidity Testing Chamber with 304 Stainless Steel Material



It is used mainly in the testing of electronics, components, pharmaceuticals, boards, quality control and R&D.



Parameters


Performance: (for no-load, the air-cooled at room temperature 25 ℃)​

​

 Temperature range  -40 ℃ ~ 150 ℃
 Temperature Control Stability  ± 0.2 ℃
 Temperature distribution is  ± 1.0 ℃ (above 80 ℃ and below -40 ℃ the temperature distribution is ± 1.5 ℃)
 Temperature rise time  room temperature rise to 150 ℃ need 35 minutes
 Cooling time
 Temp range Time needed  20~ 0℃ About 30 minutes 20~-20℃ About 40 minutes 20~-40℃ Around 50 minutes
 Humidity  10% ~ 98% RH. Note: 10% at 60 degrees when the temperature and humidity control can be
 Stability  ± 2.5% RH
 Humidity distributions are degrees  ± 3%
 Temperature and humidity control  (ordinary normal range)



Special Features of Temperature and humidity climatic testing chamber



  1. Controller: Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.

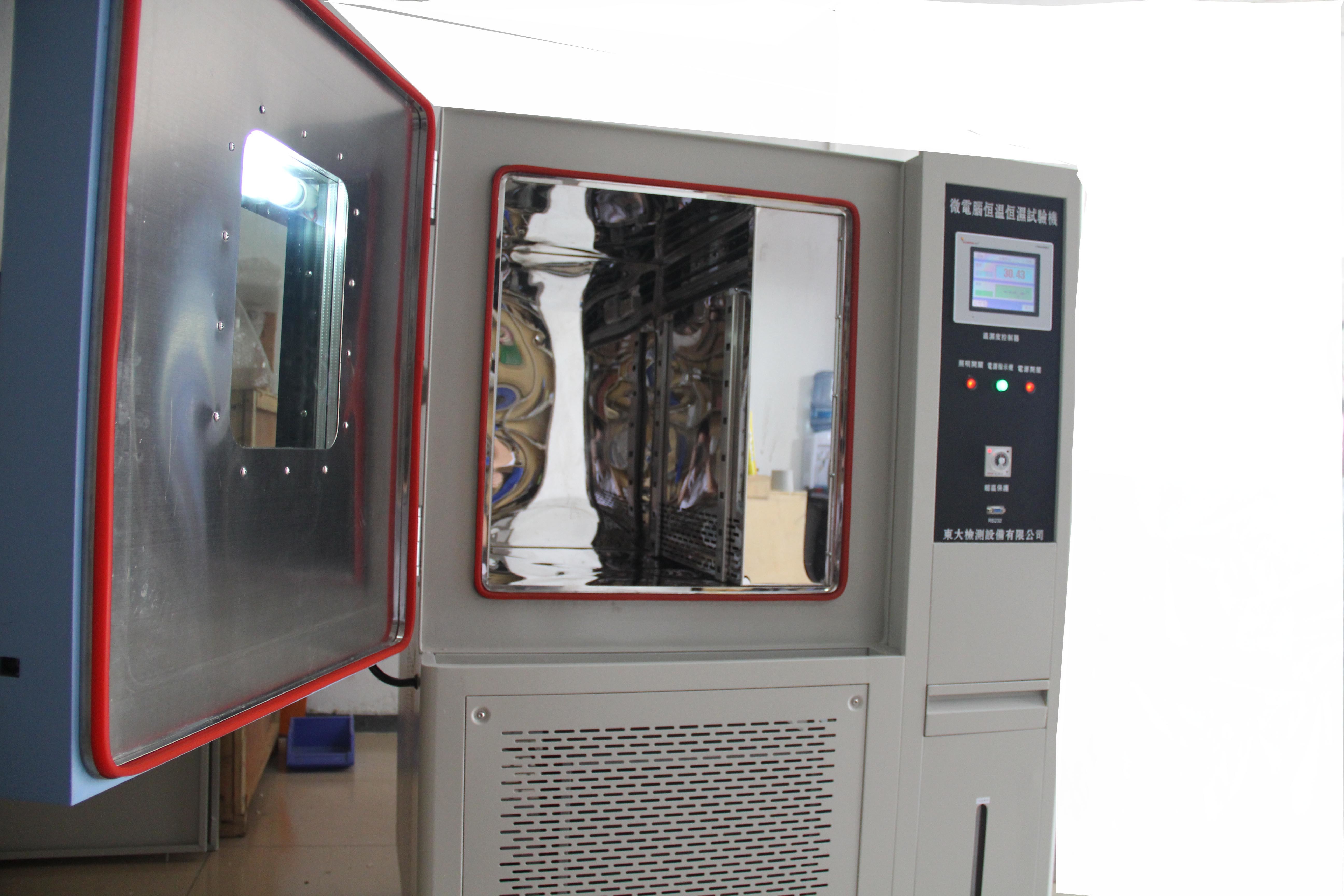

  2. View window: A large transparent glass window to observe the testing samples.
  3. Material: (inner chamber materialz) SUS#304 stainless steel plate; (exterior chamber material) stainless steel plate
  4. Insulation: Double-insulated airtight container
  5. Compressor:imported French " Tecumseh "





Safety device of Temperature and humidity climatic testing chamber

  • Humidifier dry-combustion protection
  • Independent over-temperature protection
  • Water shortage protection
  • Over-current protection
  • Refrigerant high-pressure protection switch
  • Over-current circuit breaker
  • Earth leakage protection and so on.
  • 1500L Temperature and Humidity Test Chamber with 304 Stainless Steel Material
