Constant Programmable Temperature And Humidity Test Chamber 1000L Easy Operate

Place of Origin CHINA
Brand Name SKYLINE
Certification CE
Model Number SL-E01
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms Western Union, , T/T
Supply Ability 3 unit / month
Product Details
SKYLINE: Temperature And Humidity Condition Chamber Controller: LCD Colour Touch Screen
Internal Material: SUS#304 Stainless Steel External Material: SUS#304 Stainless Steel With 3B Surface Treatment: SUS#304 Stainless Steel With 3B Surface Treatment
Humidity Range: 10 To 98%RH Accuracy: ±2%RH Power Supply: Single Phase 220V; 3phase 380V
Highlight:

humidity testing equipment

,

temperature testing equipment
Product Description

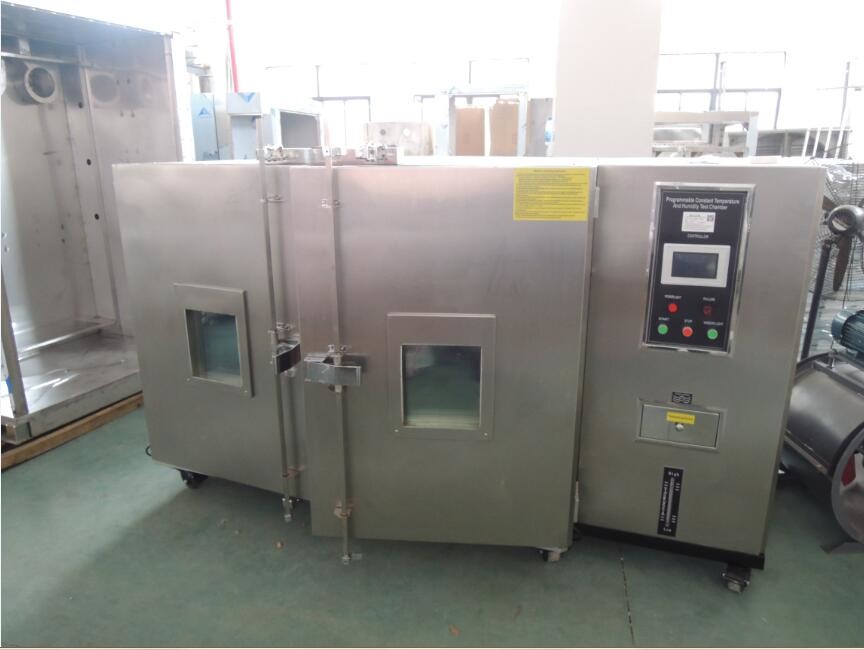

Constant Programmable 1000L Programmable Temperature and Humidity Testing Chamber



1000 L Programmable Temperature & Humidity Chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.



Features

  • The whole structure, that is, test box, refrigeration system, air conditioning system, electrical control cabinet, refrigeration unit as a whole, the refrigeration unit is located in the bottom of the box, electrical control part of the side of the test chamber, easy to operate.
  • The box
  • A) the end of the studio in the duct sandwich, the distribution of heaters, refrigeration evaporator, blast motor, fan and other devices;
  • B) The test box side with a cable threading hole 1, size ф50mm;
  • C) The test chamber is made of 1mm thick SUS304 stainless steel plate. The box shell is made of 1mm thick cold plate
  • D) The studio is equipped with two adjustable stainless steel strip shelves;



Technical Data



 The temperature range  -60 ℃ ~ + 180 ℃
 The humidity range  20% to 98%
 The temperature fluctuation  ≤ ± 0.5 ℃
 The temperature uniformity  ≤ 1 ℃
 The temperature deviation  ≤ ± 2.0 ℃
 The rise and fall rate

 From -20 to + 180 ° C for about 65 min

 From -20 to 60 ° C for about 85 min
 Wind speed  1.7 ~ 2.5m / s
 Power  about 6Kw
 Power supply  380V ± 10% V; 50Hz
 Interior dimension  100x100x100cm
 External dimension  1470*1400*2100mm (W×D×H)



  • LCD touch screen
  •
  • Inner material:SUS#304
  •
  • TEMI 850 controller
  •
  • Touch-screen display
  •
  • PLC programmable logic Inputs/Outputs (Siemens or HT-900 Korea)
  •
  • Compressor (France Tecumseh brand)
